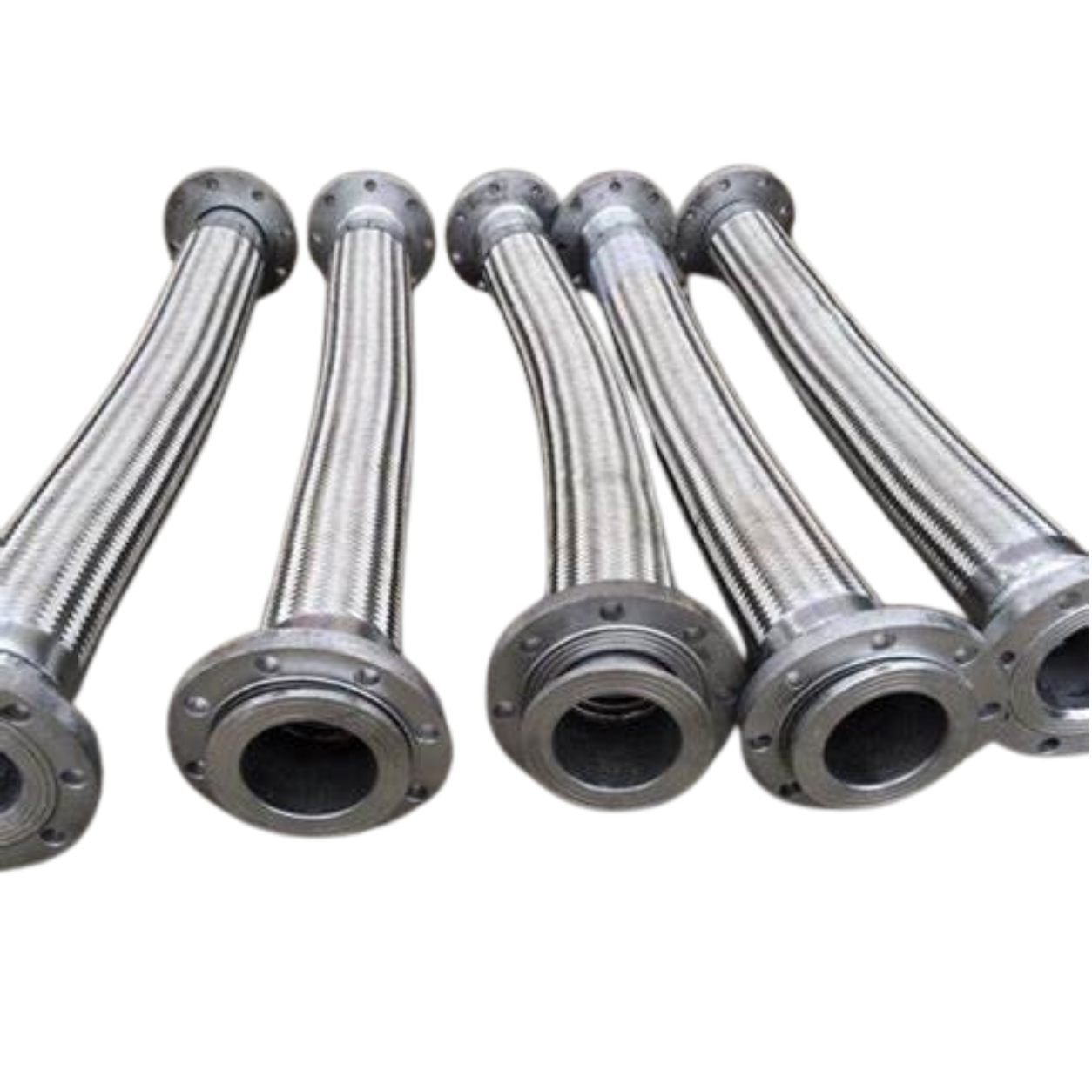

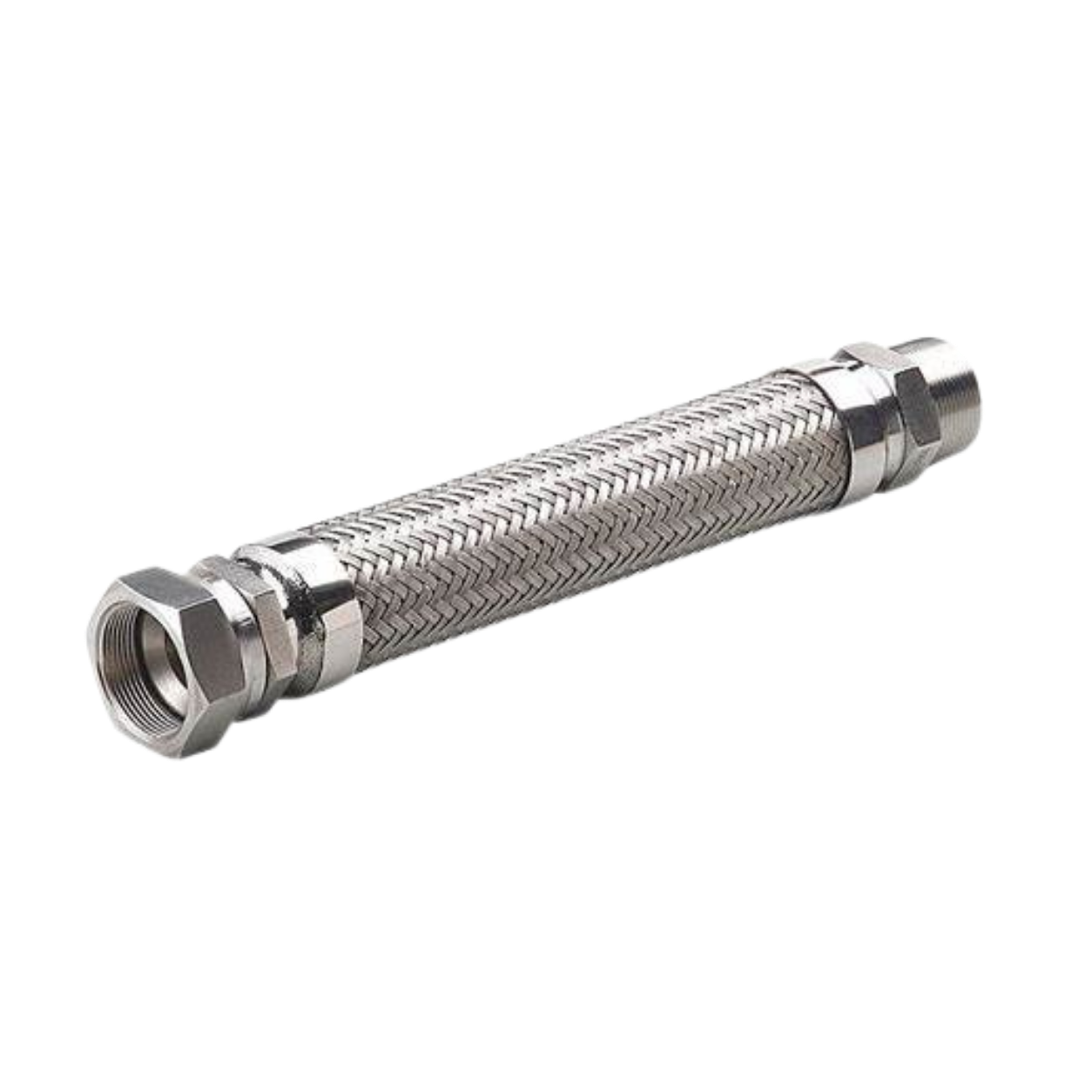

Stainless Steel Braided Flexible Hose
SS304/SS316 Flexible Hose
For product availability, sizes and technical enquiries, contact Mech Connextion Supplies directly.
Product Specifications
- Material
- SS304 / SS321 / SS316
- Braiding
- Single / Double braided (SS304)
Advantages of Flexible Metal Hose
- Suitable for a wide temperature range (-270°C to +700°C), as stated in the supplied reference.
- Compensates for thermal expansion and contraction in piping systems.
- High physical strength.
- Fire resistant.
- Moisture resistant.
- Longer service life.
- Good corrosion resistance.
- Resistant to abrasion, penetration and damage.
- Connects misaligned rigid piping and absorbs or dampens vibration from connected equipment.
- Provides a flexible and quick connection option for rigid piping in difficult locations.
The temperature range above is a general reference, not a confirmed operating rating for every hose assembly. Please confirm suitability for your operating temperature, pressure, media and end connections with our team.
Stainless Steel Braid
Unbraided corrugated hoses tend to elongate when pressurised above a certain level. To restrain this, an external layer of stainless steel wire braiding is provided on the hose.
The braiding prevents longitudinal expansion of the corrugated hose and increases its internal pressure strength.
Stainless steel braiding is highly flexible and follows the movements of the hose.
